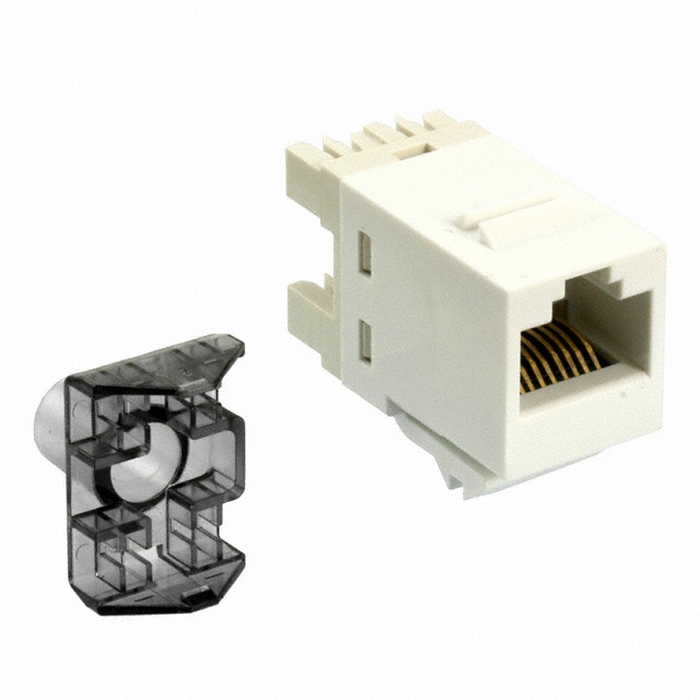

AMP Modular jack RJ45 UTP Cat.6 SL white

ANSI/TIA Category 6 Cable Type Unshielded Colour Alpine White Type of conductor Solid Built-in type of dust cover Nobody Mounting SL series faceplates and panels Installation Note The color corresponds to the front panels and boxes for surface mounting in the style of SL Alpine white or Pro white. Socket function Jack's upside-down face Outlet Type Standard Termination blows, minimum 200 times Completion Tool SL Completion Tool Completion type IDC Transmission standards ANSI/TIA-568.2-D | ISO/IEC 11801, Class E Electrical wiring T568A | T568B Sizes Cutout in the panel, recommended 14.78 x 20.07 mm (0.58 x 0.79 inches) Recommended panel thickness 1.6mm | 0.063 inches Height 16.13 mm | 0.635 inches Width 14.48 mm | 0.57 inches Depth 30.48 mm | 1.2 inches Compatible cable diameter, max 5.8mm | 0.228 inch Compatible insulated conductor diameter, max 1.45mm | 0.057inch Thickness of the contact coating 1.27 microns Compatible conductor gauge, solid 24 - 22 AWG Compatible conductor gauge, stranded 26 - 24 AWG Electrical characteristics Change in contact resistance, maximum 20 MOM Contact resistance, max . 100 mOhm Rated current at temperature 1.5 A at 20 °C | 1.5 A at 68 °F Dielectric resistance, RMS value, conductive surface 1500 V AC at 60 Hz Dielectric resistance, RMS value, between contacts 1000 V AC at 60 Hz Insulation resistance, minimum 500 MOM Remote power supply Fully supports safe power supply via LAN cables, described in the IEEE 802.3bt standard (Type 4), and meets the requirements for disconnection under electrical load prescribed by IEC 60512-99-002. PoE durability Supports IEEE 802.3bt Type 4 (90W) applications after 3000 cycles of plug-to-socket connection. Rated safe voltage 150 V AC Material Characteristics Contact base material Beryllium copper Contact coating material Gold Type of material Polycarbonate Contact coating Pot
