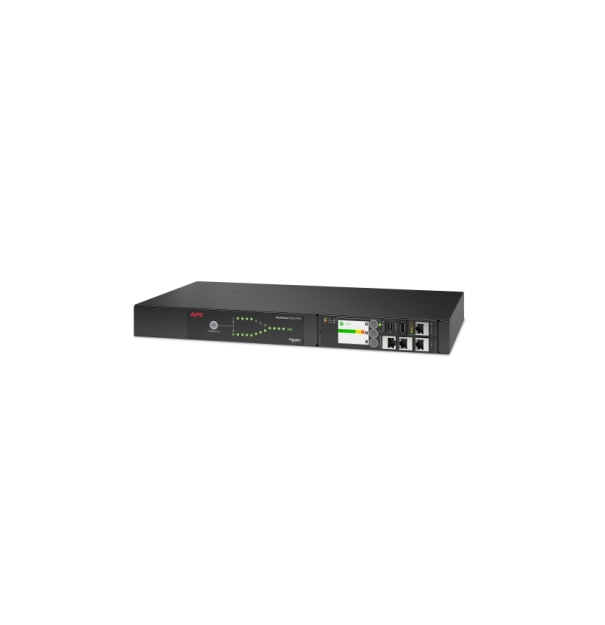

APC NetShelter Rack Automatic Transfer Switch, 1U, 16A, 230V, 2 C20 IN, 8 C13, 1 C19 OUT, 50/60Hz

Main input voltage 230 V AC 1 phase Product type or details Automatic switch Main output voltage 230 V AC 1 phase Type of input connection IEC 60320 C20 16 A 2P + E Number of rack units 1U The equipment is included Installation of equipment Brackets suitable for installation in a server cabinet Input frequency 50/60 Hz [In] Rated current 16 A The permissible value of the input voltage is 207...253 In Maximum linear current 20 A Input current limits 20 A Charging power 3700 VA Number of power outlets 8 IEC 60320 C13 10 A 2P + E 1 IEC 60320 C19 16 A 2P + E Number of power outlets 9 Type of protection Without a switch Cable length 2.44 m The ambient temperature during operation is -5...45 °C Relative humidity of the air 5...95 % Working height 0...10000 feet Ambient temperature during storage -25...65 °C The relative humidity of the air during storage is 5...95 % Storage height 0...15240 m Colour Black Height 4.4 cm Width 43.2 cm Depth 23.6 cm Net weight of the product 3.74 kg Place for assembly At the front Priority for installation But preferences Installation method Rack mounting Mounting position Horizontally
