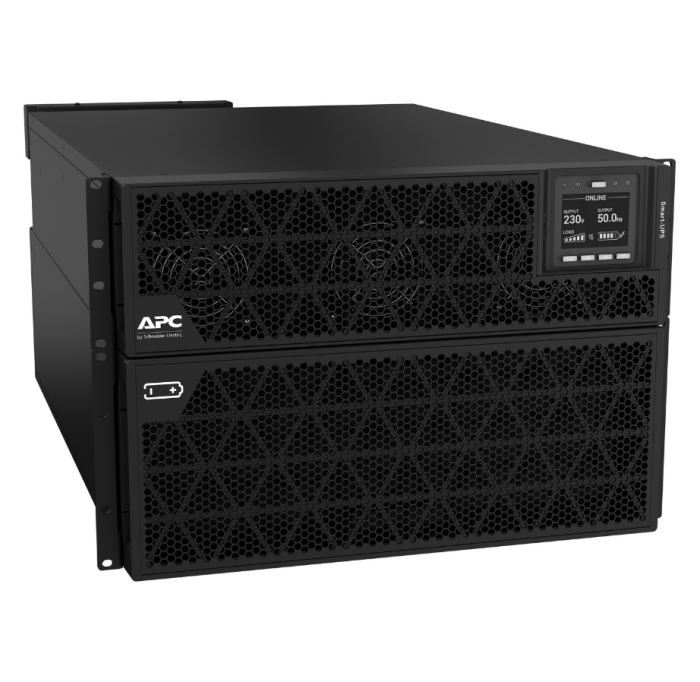

APC Smart-UPS RT 15kVA 230V International

Max. capacity used 100 % The main input voltage is 380...415 V 230 B The other input voltage is 220...240 V The main output voltage is 380...415 V 230 V Other Output voltage 230 V Rated power [W] 15000 W Rated power 15000 VA Type of output connection All-in-one five-wire (3P + N + E) 1 All-in-one three-wire (1P + N + E) 1 IDC connector three-wire (1P+ N+ E) 1 Number of Units 7U Battery Type Lead-acid battery Pre-installed batteries 0 Free battery compartments 0 Typical recharge time 4 h number of RBC™ cartridges 2 Battery voltage +/- 192 V Charger power (W) 2160 W rated battery life 3...5 year(s) The possibility of increasing the time of autonomy 1 Type of UPS Topology double transformation The number of unoccupied power modules is 0 The number of slots occupied by power modules is 0 reserve No Colour Black (RAL 9005) Height 30.6 cm Width 44,0 cm Depth 70,0 cm Net weight 142,5 kg Installation location Front Type of fastener Lower Installation execution Rack-mounted two-support mount 0 USB-compatible Yes Mounting position Horizontal Network frequency 40-70 Hz auto detection Number of input connections 1 All-in-one five-wire (3P + N + E) 1 All-in-one three-wire (1P + N + E) The limits of the input voltage are 160...285 V full load 380 V Maximum input current 66 A Current switching capacity 100 A Total harmonic distortion at the input Less than 5% at full load Input current 66 A (1 phase) 66 A (3 phases) load power factor From 0.9 leading to 1 lagging Maximum set power (VA) 15000 VA Maximum set power (W) 15000 W Output frequency 50/60 Hz +/- 4 Hz synchronized with the power grid Type of voltage form Sinusoidal signal Overload mode 60 s at 125% and 30 s at 150% EFFICIENCY 94 % Harmonic distortion Less than 5 % The Cross factor 3:1 bypass type Internal bypass (automatic and manual) Additional information Choice of output three-phase voltage 380 : 400 or 415 V
