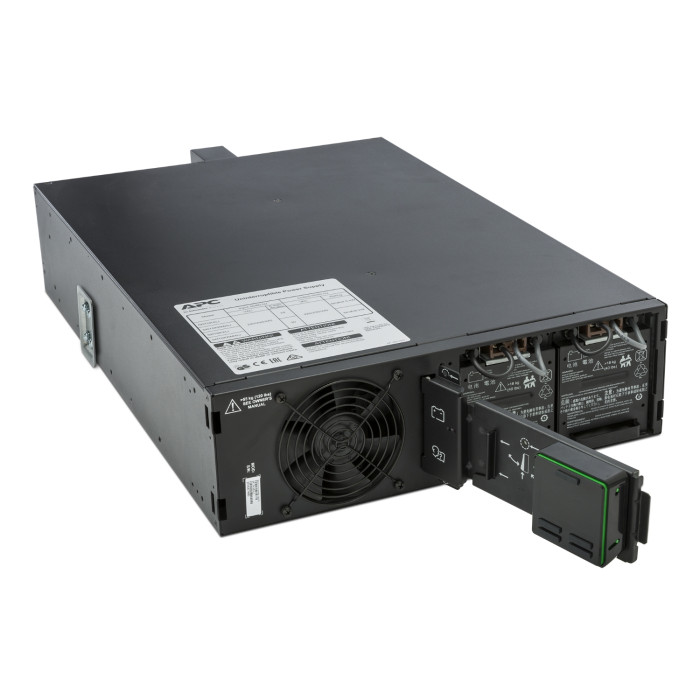

APC Smart-UPS SRT 5000VA RM 230V

Main characteristics: - Main input voltage 230 V - Other Input voltage 220 V; 240 B - Main output voltage 230 V - Other Output voltage 220 V; 240 V - Rated power [W] 4500 W - Rated power 5000 VA - Output connection type 6 IEC 60320 C13; 2 IEC Jumpers; 4 IEC 60320 C19 - Unit quantity 3U - Battery type Lead-acid battery Are common: - Product subcategory web High density - Number of slots unoccupied by power modules - 0 - Number of slots occupied by power modules - 0 - Spare - No Physical parameters: - Black color - Height 13 cm - Width 43.2 cm - Depth 71.94 cm - Net weight 54.43 kg - Installation location - Front - Fastening type - No preference - Installation style - Rack-mounted - Two-post mount - 0 - USB compatible - Yes - Mounting position - Horizontal Entrance: - Network frequency - 40 - 70 Hz auto detection - Number of input connections - 1 All-in-one three-wire (1P + N + E) - Input voltage limits - 100...275 V adjustable (for half load) Exit: - Maximum set power (W) - 4500 W - Harmonic distortion - Less than 2% - Output frequency - 50/60 Hz +/- 3 Hz synchronized with the mains - Crest factor - 3:1 - UPS type - Double conversion topology - Voltage waveform type - Sine wave - Bypass type - Internal bypass (automatic and manual) - Maximum set power (VA) - 5000 VA Correspondence: - Certificates - CE; EAC; IRAM; RCM; VDE - Marking - CE mark - Standards - EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018 Environment parameters: - Operating ambient temperature - 0...40 °C - Relative humidity - 0...95% without condensation - Altitude above sea level - 0...10000 ft - Ambient temperature during storage -15...45 °C - Relative storage humidity - 0...95% without condensation - Storage height 0.00...15240.00 m - Acoustic level 55 dBA - Heat transfer - 931 ‰ - Degree of protection IP - IP20 Batteries and battery life: - Pre-installed batteries - 0 - Typical recharge time 1.5 h - Number of RBC™ cartridges 1 - Battery voltage 192 V - Charger power (W) - 560 W nominal - Battery capacity in volt-ampere hours - 845 VAh operating time - Battery life 3...5 year(s) - Spare battery APCRBC140; SR13KXIET; SR16KXIET - Battery options - SRT192RMBP 1,2535 Wh SRT192RMBP 2 4225 VAh SRT192RMBP 3 5915 VAh SRT192RMBP 4 7605 VAh SRT192RMBP 5 9295 VAh SRT192RMBP 6 10985 VAh SRT192RMBP 8 14365 VAh SRT192RMBP 10 17745 VAh - Possibility of increasing autonomy time - 1 Communication and admin tools: - Free slots - 1 - Pre-installed SmartSlot&tra cards - Network management card 3 with environmental monitoring - Alarm - Audible and visible alarms : prioritized by severity - Emergency Power Off (EPO) - Yes Surge and filtering protection: - Rating according to the level of absorbed energy of the float - 480 J
