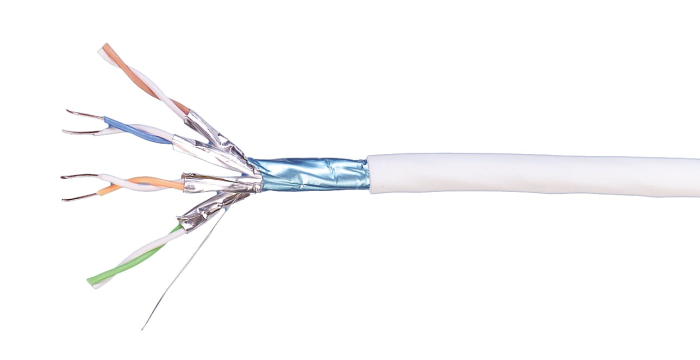

Cable NETCONNECT CS44Z3 WHT 4/23 C6A F/FTP 500M RL

Main Features Product Number CS44Z3 ANSI/TIA category 6A Type of cable component Horizontal Cable Type F/FTP (shielded) Conductor type, single Solid Conductors, quantity 8 Jacket Color White Pairs, quantity 4 Transmission standards ANSI/TIA-568.2-D | ISO/IEC 11801, Class EA Sizes Cable length 500 m | 1640.42 ft Cable length tolerance ±5% Diameter of the insulated conductor 1.168 mm | 0.046 inches Diameter above the shell, nominal 7.01 mm | 0.276 inches Shell thickness 0.61 mm | 0.024 inches Conductor gauge, single 23 ARG Electrical characteristics Attenuation of communication Type II Asymmetry of DC resistance, maximum 2 % DC resistance, maximum 7.61 ohms/100 m | 2.32 ohms/100 ft Mutual capacitance at a frequency of 4.2 nF/100 m at 1 kHz Rated Propagation Velocity (NVP) 80 % Operating frequency, maximum 500 MHz Operating voltage, maximum 80 V Remote power supply Fully complies with the recommendations of the IEEE 802.3bt standard (type 4) for safe power supply via LAN cable when installed in accordance with ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A Segregation class d Transmission resistance 2nd class
