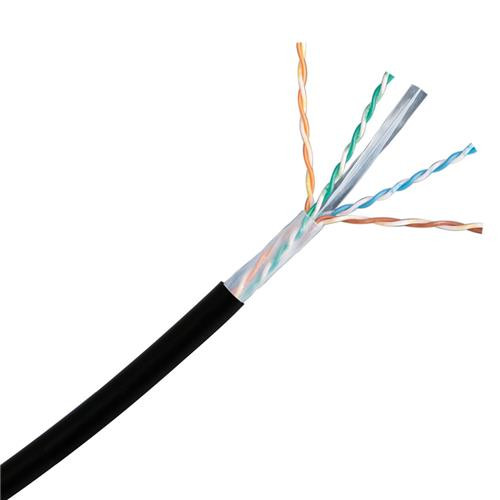

Cat. 6 U/UTP Outdoor Cable LSZH; OD 7.2 mm (500m)

ANSI/TIA Category 6 Type of cable component Horizontal Cable Type U/UTP (unshielded) Conductor type, single Solid Conductors, quantity 8 Jacket Color Black Pairs, quantity 4 Transmission standards ANSI/TIA-568.2-D | CENELEC EN 50288-6-1 | ISO/IEC 11801, Class E Sizes Cable length 500 m | 1640.42 ft Diameter above the shell, nominal 7.3mm | 0.287 inches Conductor gauge, single 24 AWG Electrical characteristics Rated Propagation Velocity (NVP) 67 % Operating voltage, maximum 80 V The remote power supply Fully complies with the recommendations of the IEEE 802.3bt standard (type 4) for safe power supply via LAN cable when installed in accordance with ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A Rated safe voltage 240 V Segregation class B Material Characteristics Conductor Material Bare copper Insulation material Polyolefin Jacket Material Flame-resistant halogen-free product with low smoke emission (LSFRZH) Environmental characteristics Operating Temperature -10 °C to +60 °C (+14 °F to +140°F) EN50575 CPR EuroClass Fire Performance Cable FCA Ecological space The cable is not suitable for laying in the ground | Indoor | Outdoor Packaging and weight Type of packaging The coil
