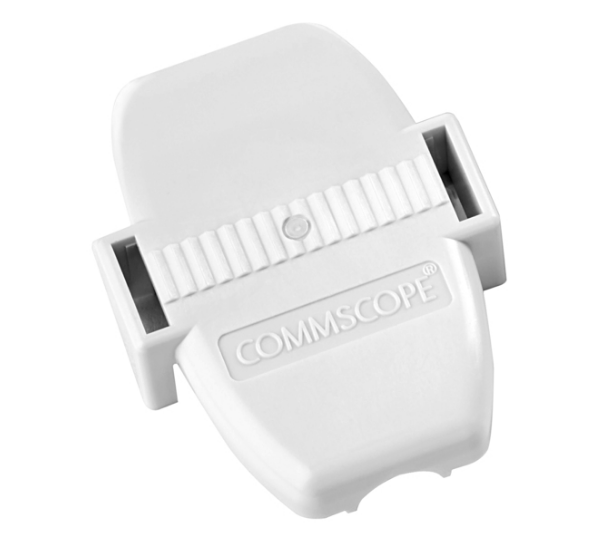

Ceiling Connector Assembly (CCA) Category 6A U/UTP without cordage

ANSI/TIA 6 | 6A category Cable Type U/UTP (unshielded) Colour Electric White Type of conductor Solid | Stuck Product Type A set of connectors Height 27.178 mm | 1.07 inches Width 35.56mm | 1.4 inches Depth 51.816 mm | 2.04 inches Compatible conductor gauge, solid 26 - 22 AWG Compatible conductor gauge, stranded 26 - 22 AWG Change in contact resistance, maximum 20 mOm Contact resistance, maximum 100 mOhm Rated current at temperature 1.5 A at 20 °C | 1.5 A at 68 °F Dielectric Withstand voltage, RMS value, between contacts 1000 V AC at 60 Hz Insulation resistance, minimum 500 mOm Contact coating material Precious metals IDC connection material Phosphoric bronze Type of material Impact-resistant, flame-resistant thermoplastic | Phosphoric Bronze Plug service life, minimum 750 times Cork retention force, minimum 44.645 kg/m | 30 lb/ft Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F) Storage temperature -40 °C to +70 °C (-40 °F to +158 °F) Relative humidity Up to 95%, non-condensing Ecological space Low-smoke, halogen-free (LSZH) | Plenum Flammability rating 94 V-0 STREET Safety standard ETL | cETL
