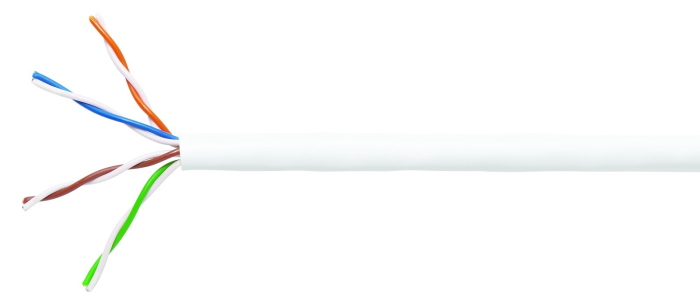

CS24Z3 Cable NETCONNECT U/UTP, Cat.5e LSZH, 305 m

Main Features ANSI/TIA category 5e Type of cable component Horizontal Cable Type U/UTP (unshielded) Conductor type, single Solid Conductors, quantity 8 Jacket Color White Pairs, quantity 4 Transmission standards ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801, Class D Sizes Cable Length 304.8m | 1000 ft Diameter above the shell, nominal 5,207 mm | 0.205 inches Shell thickness 0.533 mm | 0.021 inches Conductor gauge, single 24 AWG Electrical characteristics Direct current resistance asymmetry, maximum 5 % DC resistance, maximum 9.38 ohms/100 m | 2,859 ohms/100 ft Mutual capacitance at a frequency of 5.6 nF/100 m at 1 kHz Rated Propagation Velocity (NVP) 69 % Operating frequency, maximum 200 MHz Operating voltage, maximum 80 V Remote power supply Fully complies with the recommendations of the IEEE 802.3bt standard (Type 4) for safe power supply via LAN cable when installed in accordance with ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A. Segregation class B Material Characteristics Conductor Material Bare copper Insulation material Polyolefin Jacket Material Low-smoke, halogen-free (LSZH)
