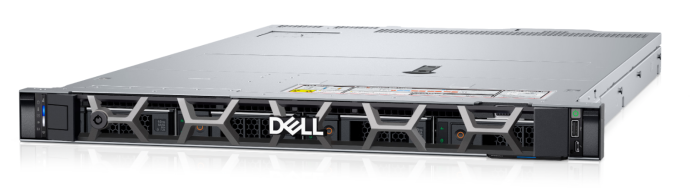

DELL PE R660xs/2xXeon Gold 5416S 16C/32T 2Ghz/2x32GB/4x960 SSD SATA RI/H755/2x700W/DP 10G BT/QckSnc/LCD Bez/iDRAC Ent/3YrPSNBD

Processor Up to two scalable Intel Xeon 5th generation processors with up to 28 cores and scalable Intel Xeon 4th generation processors with up to 32 cores per processor Memory 16 DDR5 DIMM slots, RDIMM support maximum 1.5 TB, speed up to 5200 million operations per second, support only registered ECC DDR5 DIMM modules Data Storage Controllers • Internal controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i. • Internal boot: Boot-optimized storage subsystem (BOSS-N1): HWRAID 1, 2 M.2 NVMe solid-state drives (cold replacement) or USB. • External HBA Adapter (not RAID): HBA355e • Software RAID: S160 Drive compartments Front compartments: • 0 drive bays • Up to 4 3.5-inch SAS/SATA (HDD/SSD) max. 80 TB • Up to 8 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 122.88 TB • Up to 10 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 153.6 TB Rear compartments: • Up to two 2.5-inch SAS/SATA/NVMe (HDD/SSD) max. 15.2 TB. Hot swap Redundant Power supplies • Titanium, 1800 W, 200-240 V AC or 240 V DC • 1400 W Platinum 100-240V AC or 240 V DC • Titanium, 1400W, 277 VAC or DC (HVDC means "High voltage DC" with a voltage of 336 VDC) • Titanium, 1100 W, 100-240 VAC or 240 V DC • 1100 W - (48-60 V) DC • 800W Platinum 100-240V AC or 240 V DC • Titanium, 700 W, 200-240 V AC or 240 V DC • 600W Platinum 100-240VAC or 240 V DC Cooling options • Air cooling Fans • Standard (STD) fans/High-performance Gold (VHP) fans, up to 7 hot-swappable fans Dimensions and weight • Height - 42.8 mm (1.68 inches). • Width - 482 mm (18.97 inches). • Depth - 748.79 mm (29.85 in) with a frame of 712.95 mm (28.05 in) without a front panel • Weight - 19.45 kg (55.33 lbs). Form factor rack server 1U Built-in Management • iDRAC9 • iDRAC Direct • RESTful iDRAC API with Redfish. • iDRAC Service Module • Quick Sync 2 Wireless Module The bezel is optional LCD front panel or protective panel OpenManage Software • The CloudIQ plug-in for PowerEdge. • OpenManage Enterprise • OpenManage Enterprise integration for VMware vCenter • OpenManage integration for Microsoft System Center. • Integration of OpenManage with the Windows Administration Center. • OpenManage Power Manager plugin. • OpenManage service plugin. • OpenManage Update Manager plugin.
