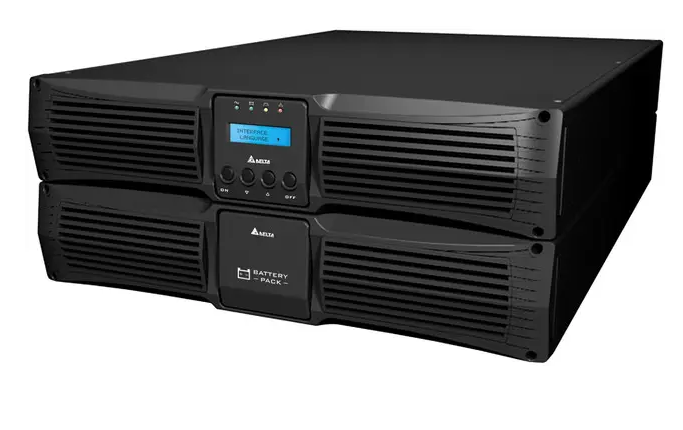

Delta Electronics RT 5-20kVA 2U EBC 16x7Ah batteries, height, label in EN

Rated voltage 200/208/220/230/240 VAC, 1P2W+PE Voltage range 175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load) Frequency range 40-70 Hz Total Harmonic Distortion Coefficient (THDi)< 3% Power factor > 99% (100% load) Connection Input terminal Rated voltage 200/208/220/230/240 VAC, 1P2W+PE Voltage regulation ±1% Frequency 50/60 ± 0.05 Hz Total harmonic distortion coefficient (THDv) < 2% (linear load), < 4% (nonlinear load) Power factor 1 A model with extended working hours Terminal x1, programmable terminal x1 Overload capacity(1)106-125%: 5 min, 126-150%: 1 min, > 150%: 500 ms Current peak ratio 3:1 Online mode Up to 95.5% Eco Mode Up to 99% Battery Type VRLA/Lithium-ion Display Graphic LCD display with LED indicators Port USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3 Dimensions (W x D x H) Standard operating time model: ● RT-5K/6K440 x 665 x 176 mm ● RT-8K/10K440 x 750 x 218 mm A model with an extended working time: ● RT-5K/6K440 x 430 x 88.2 mm ● RT-8K/10K440 x 565 x 88.2 mm Weight: Model with standard operating time: ● RT-5K/6K54 kg ● RT-8K/10K85.5 kg A model with an extended working time: ● RT-5K/6K10.9 kg ● RT-8K/10K15,2 kg Operating temperature 0-55 °C (45-55 °C load reduction up to 75%) Humidity 5-95% (non-condensing) Noise level: ● RT-5K/6K< 48 dBA ● RT-8K/10K< 50 dBA Altitude above sea level 0-3000 m (decrease in nominal characteristics by 1%/100 m from 1000 to 3000 m) Protection against penetration IP20 Safety CE, UKCA, TISI, RCM EMS IEC 62040-2 Efficiency IEC 62040-3 Stability RoHS, REACH
