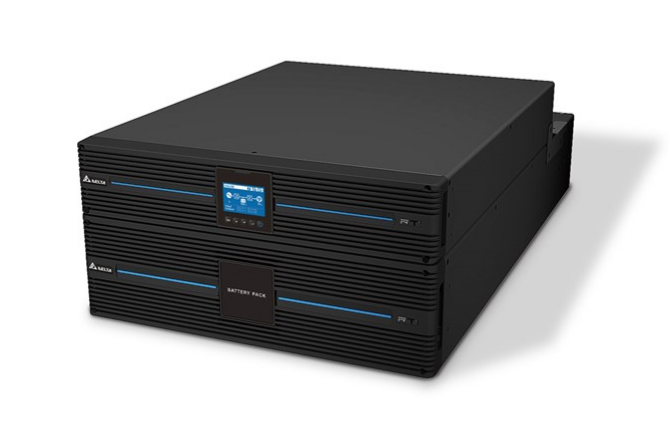

Delta Electronics RT 5kVA, 1:1, 230V, PF unity, default charging current 1A, inbuilt 16x7Ah batteries, with MBB

Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage range 175-280 VAC (100% load), 100-175 VAC (with reduction to 50-100% load) Frequency range 40-70 Hz Total Harmonic Distortion Coefficient (THDi) < 3% Power factor > 99% (100% load) Connection Input terminal Rated voltage 200/ 208/ 220/ 230/ 240 AC, 1P2W+PE Voltage regulation ±1% Frequency 50/60 ± 0.05 Hz Total harmonic distortion coefficient (THDv) < 2% (linear load), < 4% (nonlinear load) Power factor 1 Connection Standard operating time model ⦁ RT-5K/6K C13 x6, C19 x2, terminal x1, programmable socket C19 x1 ⦁ RT-8K/10K C13 x6, C19 x4, terminal x1, programmable socket C19 x1 A model with an extended working time Terminal x1, programmable terminal x1 Overload ability(1) 106-125% 5 min, 126-150% 1 min, > 150% 500 ms Current peak The coefficient is 31 Online mode Up to 95.5% Eco Mode Up to 99% Battery Type VRLA/ Lithium-ion Rated voltage The standard run-time model ⦁ RT-5K/6K 192 V DC ⦁ RT-8K/10K 240 V DC The extended execution time model 144 V DC(2), 192-264 V DC Charge current The standard run-time model ⦁ RT-5K/6K 1A (default), up to 8 A ⦁ RT-8K/10K 1.5A (default), up to 8 A Extended Execution time model Up to 8 A Display Graphic LCD display with LED indicators Port USB, RS-232, RS-485, Mini Slot, REPO, Input Dry Contact x1, Output Dry contact x3 Dimensions (W x D x H) The standard run-time model ⦁ RT-5K/6K 440 x 665 x 176 mm ⦁ RT-8K/10K 440 x 750 x 218 mm A model with an extended working time ⦁ RT-5K/6K 440 x 430 x 88.2 mm ⦁ RT-8K/10K 440 x 565 x 88.2 mm Weight A model with a standard operating time ⦁ RT-5K/6K 54 kg ⦁ RT-8K/10K 85.5 kg A model with an extended working time ⦁ RT-5K/6K 10.9 kg ⦁ RT-8K/10K 15.2 kg
