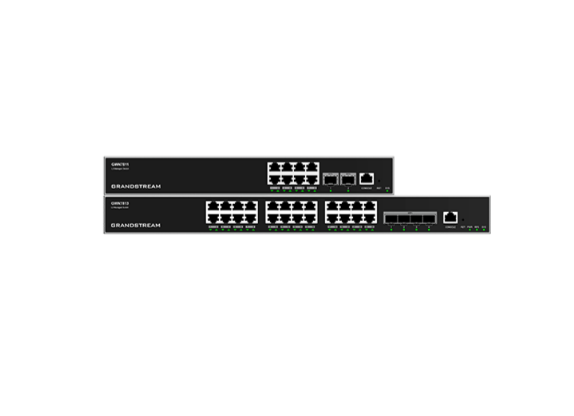

Grandstream GWN7813P, Enterprise Layer 3 Managed Network Switch, 24-ports Gigabit Ethernet, PoE/PoE+ (360W), 4-SFP,Desktop, wall-mount, or rack-mount

Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1x PoE Standards IEEE 802.3af/at/bt Gigabit Ethernet Ports 24 10Gigabit SFP+ Ports 4 Maximum number of supported modules SM-10G: 4 MM-10G: 4 RJ45-10G: 2 Console 1 Number of PoE ports 24 Channel aggregation 14 External backup power supply 54 V (300 W) Max. power per PoE port 60W (1-8, PoE++) 30W (9-24) Max. total PoE capacity 360 Watts PoE Standards IEEE 802.3af/at/bt Overload protection ± 6 kV CM and DM for power supply ± 4 kV CM for network ports ESR ± 12 kV for contact discharge Additional ports 1 vent hole Redirection mode Accumulation and transfer Total throughput without blocking 64 Gbps Switching speed 128 Gbps The redirection rate is 95.232 Mbps Packet Buffer 12 MB Network delay <4µs Switching • 16,000 static or dynamic MAC address records with filtering • 4 thousand VLANs, port-based VLANs, IEEE 802.1Q VLAN tags, Voice VLAN • Virtual VLAN interface • GVRP (under development) • Spanning tree, 32 instances for STP/RSTP/MSTP Routing • Static routing • Dynamic routing, including RIP, RIPng, OSPF and OSPFv3 • Policy-based routing (under development) Multicast • IGMP Snooping • MLD Snooping • MVR (under development) QoS/ACL • Port prioritization • Prioritization scheme • Priority schedule, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic management • Speed limit • 2 thousand. ACL for Ethernet, IPv4 and IPv6 The DHCP Server DHCP, DHCP Relay, and DHCP Option 82, 60, 160, and 43 Service CPU and memory monitoring, SNMP, RMON, LLDP and LLDP-MED, backup and recovery, system log, diagnostics, including Ping, Traceroute, Port Mirroring, UDLD (TBD) and Copper Test Safety • User hierarchy management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication, including RADIUS, TACACS+ • Storm Control • Port Isolation, Port Protection, Sticky MAC • MAC address filtering • IP Source Guard, protection against DoS attacks, ARP Inspection • DHCP Snooping • Loop protection, including BPDU protection, root protection (in development) and loop detection (in development) • Kensington Socket (for Kensington locks) Mounting Desktop, wall-mounted or rack-mounted (rack brackets included) System indicators 1 three-color indicator for device monitoring and status indication Dimensions 440 x 300 x 44 mm (L x W x H) Device weight 4.69 kg
